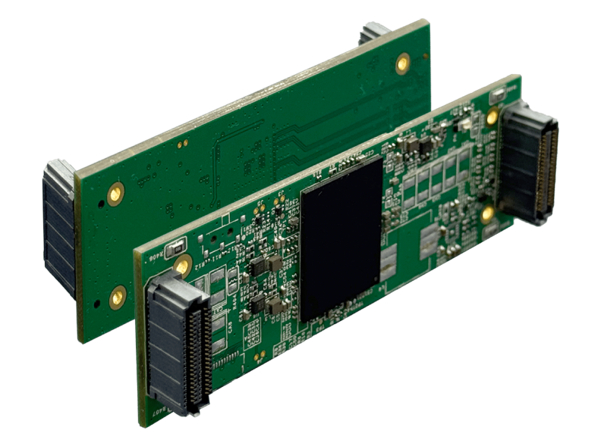

QMC-SWDL
NVMe PCIe Gen4 x4
-
This QMC Storage Module stands as the smallest and most reliable storage solution available for systems where space is at a premium and high performance is non-negotiable.
-
Fully compliant with the VITA 93 standard.
-
Available in capacities ranging from 64GB to 1TB, the QMC provides scalable, high-density storage that does not compromise on resilience.
-
Built with a signature ruggedized design, the module is qualified to survive extreme shock, vibration, and extended temperature ranges.
-
For aerospace, defense, and industrial applications operating in the harshest environments, the QMC series offers the perfect balance of size, speed, and uncompromising durability.
Download Files
Product Specifications
| Series Name | QMC-SWDL | ||||
|---|---|---|---|---|---|
| Interface | NVMe PCIe Gen4 x4 | ||||
| Capacity Coverage | 64GB ~ 1TB | ||||
| Capacity | |||||
| 3D TLC | 64GB ~ 1TB | ||||
| Performance Overview | Seq. R : 3300 MB/s ; Seq. W : 2800 MB/s | ||||
| Performance | |||||
| 3D TLC | Seq. R : 3300 MB/s ; Seq. W : 2800 MB/s | ||||
| Standard Operating Temperature | 0°C ~ 70°C | ||||
| Extended Operating Temperature | -40°C ~ 85°C | ||||
| Dimension LxWxH (mm) | 78.25 mm(L) x 26 mm (W) x 9.35 mm (H) | ||||
| Data Sheet |  |
||||
